World Trade Center S. Boston (2003)

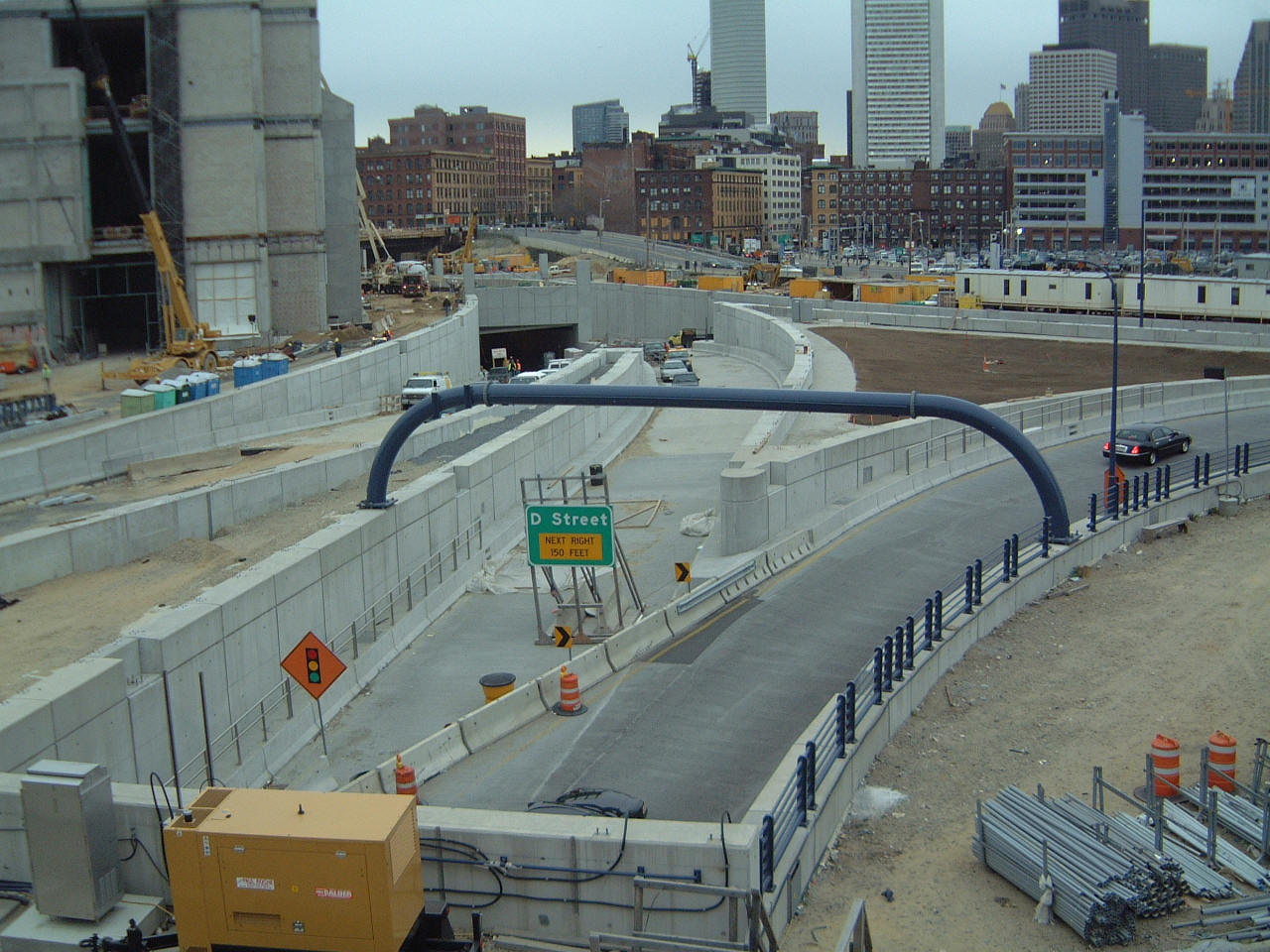

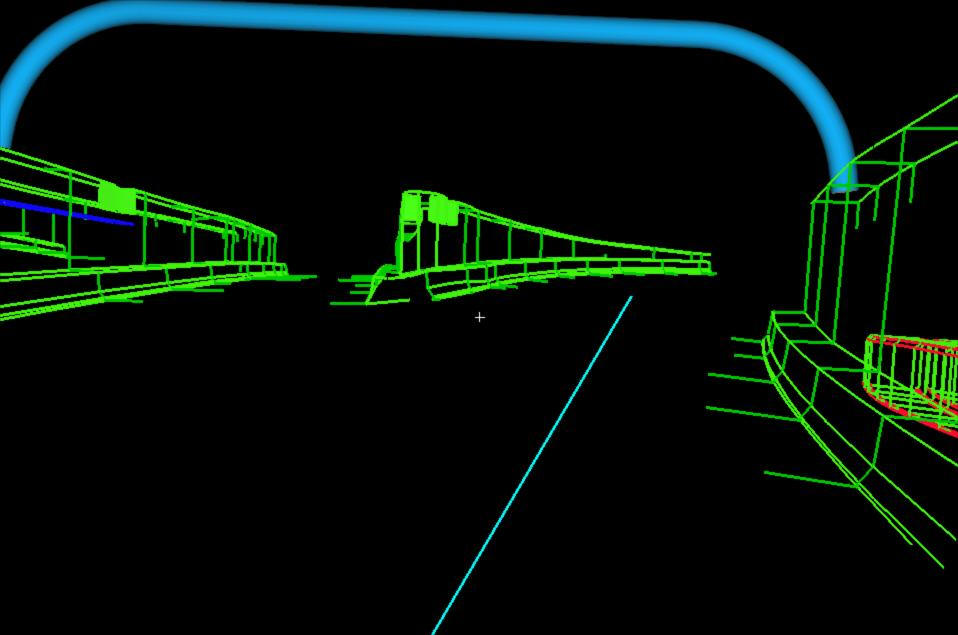

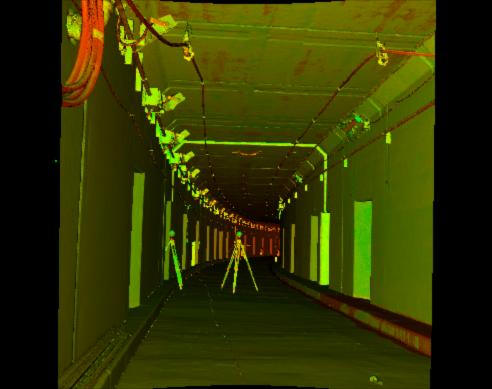

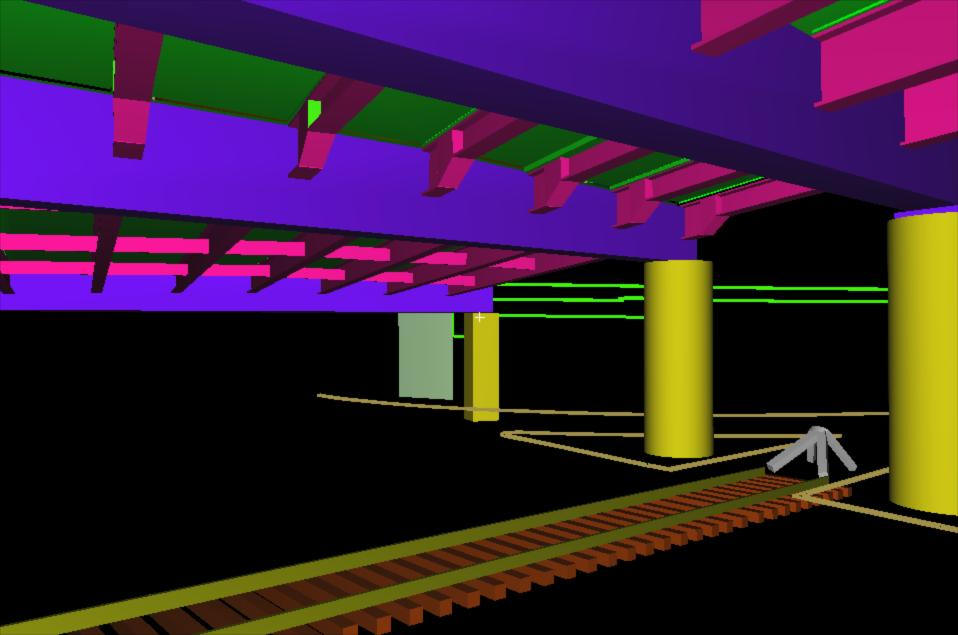

We were hired by the owner to provide As-Built Plans of the site to provide to the architect for the design of a mixed use complex. They required the locations of the Central Artery Tunnels and ramps, the Silver Line Tunnel and the existing viaduct that ran across the site to the World Trade Center for the proposed locations of the piles in between the tunnels and viaduct to support a high rise and parking garage. The scan was completed in 60 hours. In 4 weeks we provided the completed plans.


click on images to enlarge
